formal methods

How do formal methods work?

Formal methods work much like mathematical proofs. To prove the Pythagorean theorem, we don’t measure every right triangle in existence – we use mathematical logic to show that the relationship holds for all right triangles, no matter their size. Similarly, formal methods use mathematical reasoning to prove that a software system will behave correctly under every possible scenario, not just the ones we test.

In Traditional Software Development, we rely on manual or automated testing to check whether a system meets its requirements. But just as we can’t prove the Pythagorean theorem by testing a few triangles, we can’t verify the correctness of a complex system by checking a handful of inputs. Testing only covers a limited subset of behaviors, leaving room for errors to escape detection.

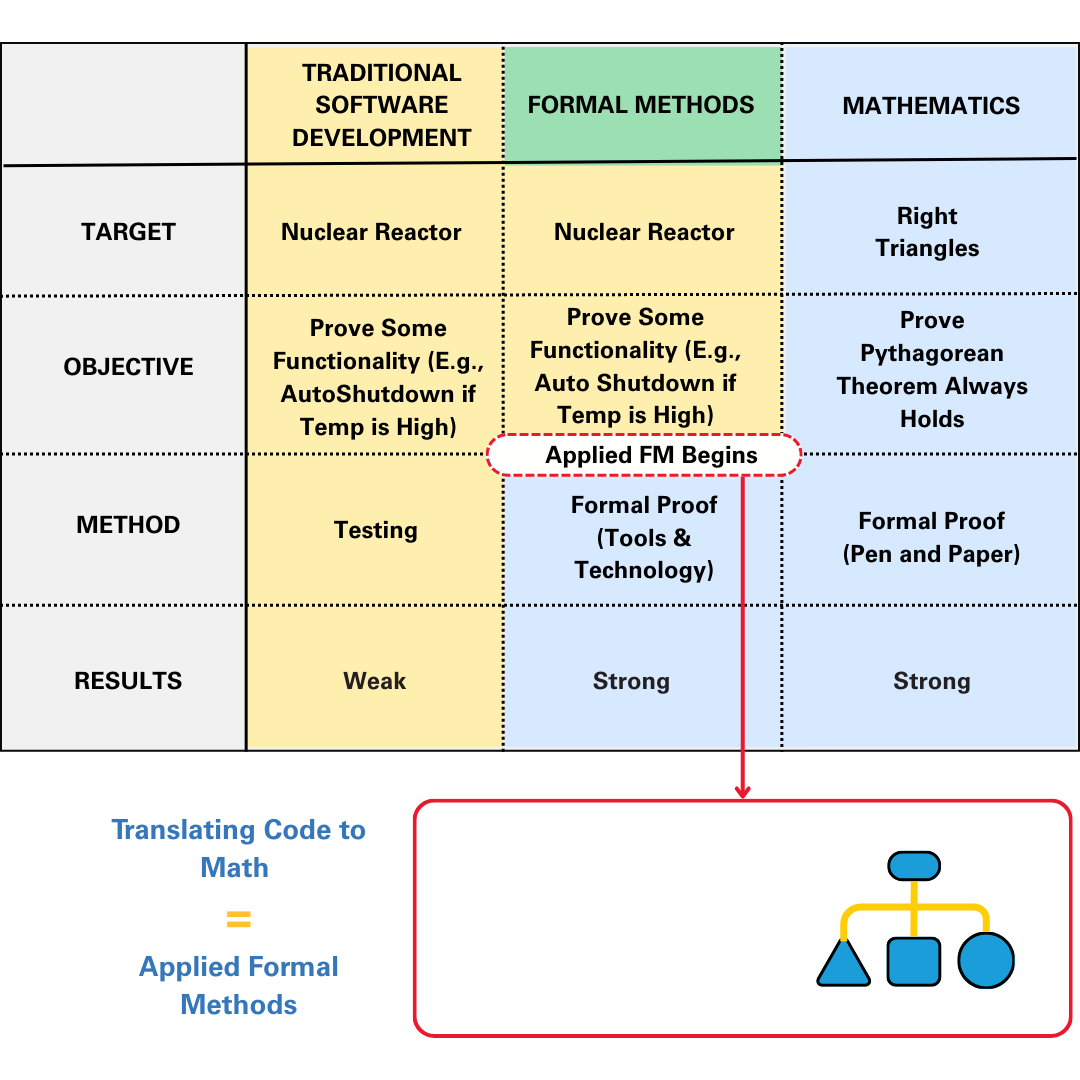

By contrast, with Formal Methods we translate the description of a system’s intended behavior into a precise mathematical problem, allowing us to reason about every possible input and outcome using formal proofs. By shifting from testing specific cases like a software developer to proving general correctness like a mathematician, formal methods bridge the gap between real-world systems and mathematical certainty – delivering far stronger assurance of safety, security, and reliability.

examples of formal methods

Examples of formal methods in software engineering include:
‍

Let’s say you are developing a nuclear reactor and a component in the system is supposed to monitor reactor temperature and automatically shut the system down if readings fall outside a safe range. If this function fails, it would result in catastrophic damage.

In traditional development, engineers would rely on manual or automated testing to check whether the temperature monitoring software behaves as expected. However, testing can only cover a finite number of cases / inputs. Testing might check a few values around the safe range, but it can’t account for every possible input the system might receive in deployment.

Formal methods offer a more robust alternative. By mathematically modeling the system and its expected behaviors, we can prove that the system will respond correctly to any possible temperature input – even edge cases engineers didn’t think to test.

For example, the method shown below is a snippet of software that checks some input temperature and reacts if it is out of bounds.

Traditional Development Approach Example:
‍

1   bool is_valid_temperature_range(int temperature) {
2       return (temperature < 2200);
3   }

A traditional testing approach would throw values at this function within the range, outside of the range, and at the boundary of the range. In comparison, an example formal methods approach would be to annotate this function with a logical claim that specifies how it should behave – as shown below.

Formal Methods Approach Example:
‍

1   /*
2     behavior temperatureInRange:
3       assumes (temperature < 2200);
4       ensures \result == true;
5     behavior temperatureOutOfRange:
6       assumes (2200 <= temperature);
7       ensures \result == false;
8   */
9   bool is_valid_temperature_range(int temperature) {
10       return (temperature < 2200);
11  }

Formal methods tooling then creates a math model out of the contract (lines 2-7 of Listing 2) and the entire software program. It then tries to prove that:
‍

If a tool can prove this contract, it provides assurance that the method is correct for all temperature values.

principles of formal methods

Applying these principles effectively across a system or engineering process can be intricate, and involves tradeoffs. To realize their full value, formal methods must be applied with strategic intent – targeting the components that matter most, using tools and techniques that fit the development context, and balancing cost and assurance. These principles are not intended as requirements that must be met, but rather as guidance that can help guide the adoption of formal methods across various stages of system development:

principal 1: Apply with precision

Applied Formal Methods (AFM) techniques and tools exist on a spectrum, as illustrated in the figure below.
‍

On one end of the spectrum are simple applied concepts that are understandable by and available to engineers. They are akin to dipping one’s toes into the AFM world. One example of this is inserting a few code-level contracts into the software. One can perform a little bit of AFM to a part of their system and get some value out of it.
‍
On the other end lies pure formal methods in all their complex glory. You will find that researchers usually live here. They provide precise mathematical claims backed by rigorous proofs using tools such as theorem provers. While this is a worthy goal, it is simply not tenable to apply across an entire system: (1) it is not always scalable, (2) the tools are not at industrial usability standards, (3) engineers in industry are often not mathematicians, and (4) not all systems can be proven to be correct with today’s technology due to complexities of interactions with the environment.

Not only does which formal method you choose make a difference, so does where you choose to apply them. Applying formal methods to an entire system is rarely necessary, or even practical. Instead, it’s important to choose the right tool or technique and apply it to the specific part of a system where it will make the biggest impact.

For example, a commercial aircraft is a mixed-criticality complex system. Within the aircraft as a whole, the entertainment system is low criticality (if it fails, it will be inconvenient), the toilet flusher control is medium criticality (if it fails, it will be a more significant problem that may result in reputational or financial costs), and the flight controls are high criticality (if they fail, the plane crashes and everyone dies). In this example, the Airline may choose to formally verify the flight control system, but choose a lower assurance verification technique for the entertainment and toilet flusher system.

Think of your system as a network of mixed-criticality components. Choose where formal assurance is most needed, then apply just enough formal methods to reduce risk without slowing progress. Use the following framework to guide your strategy:

1. Identify critical components, whether for safety, security, or business impact
‍
2. Select the right level of formal method based on the risk profile. For low-to-medium criticality, easier but slightly lower assurance techniques may suffice. For highly-critical applications, consider full formal verification.
‍
3. Start small and focused. Choose one area to apply formal methods. Train a small group of engineers and give them a clearly defined, attainable goal.

4. Work incrementally. Many formal methods live on a spectrum, from lightweight annotation to full theorem proving. Even minimal use can deliver meaningful results.

There are often two axes of technical approaches when you're trying to increase the assurance of a system: (a) find as many bugs as possible, and then eliminate those bugs, or (b) prove the absence of all bugs (within a well specified class). Techniques that fall into category (a) are generally lightweight approaches that can be extremely useful in raising the assurance of a system (e.g., symbolic execution, fuzzing). Techniques that fall into category (b) tend to be more heavyweight approaches that can be applied to components of very high criticality.

principal 2: specification before implementation

Crafting clear, unambiguous specifications is very useful in formal methods. During system development, engineers typically begin by writing a specification: a description of the system’s design, features, requirements, and intended behavior which serves as the blueprint of the system. Yet these specifications vary widely – from formal documents to napkin sketches – and are rarely precise, consistent, or agreed on by all users of a system. As a result, the implemented system may not match the specification. This can lead to cost or schedule overruns due to misunderstandings of what should be implemented. It also can lead to subtle security vulnerabilities, safety concerns, or performance issues.

Rewriting or translating a specification using a controlled natural language or formal specification language removes ambiguity, enables verification of the specification itself (e.g., checking consistency and completeness), and lays the groundwork for mathematically verifying that an implementation conforms to its intended design. Even if no further formal methods are used, refining your specification process alone can produce enormous benefits: Reduced defects, clearer communication, and fewer integration surprises.

What if you do not have any specifications? If you have existing subsystems and legacy code and no specifications, there are some lightweight formal methods that can help check existing implementations, e.g., equivalence testing, binary analysis, some static analyses. However, for many tools and formal approaches, some form of understandable behavior specification is critical, even if that is developed after the fact, e.g., for legacy systems.

principal 3: validation and verification

Testing and formal proofs are complimentary approaches, not alternatives.
‍
Testing helps validate that a system behaves as expected under a finite set of test inputs. Verification goes further: it proves, mathematically, that the implementation always satisfies its specification under all possible inputs and execution paths.
‍
Some formal verification techniques can be woven into existing development pipelines. Static analyzers and contract checkers, for example, can validate software correctness without requiring wholesale changes to engineering practices. Tools such as Frama-C for C, PMD for Java, Logika for Scala, and SPARK Ada for Ada can help teams get started quickly with manageable effort.

principal 4: abstraction and modeling

Formal methods depend on well-chosen abstractions. The right model captures essential system behaviors while omitting irrelevant details – allowing meaningful analysis early and often in the development lifecycle.
‍

When combined with strong tool support (e.g., AADL, Simulink, or Mathworks tools), these models enable scalable assurance across system layers.

principal 5: refinement

Systems evolve from abstract ideas into detailed implementations through a series of refinements. At each stage, formal methods can ensure that each step preserves correctness.
‍
Take an example of Railways: a broad rule like “only one train on a track at a time” can be refined into concrete designs involving interlocks, signals, and movement logic – each verified to preserve the core safety requirement.
‍
Refinement frameworks make it possible to mathematically link high-level requirements to low-level implementations – reducing the risk of gaps.

Benefits of formal methods

These aren’t just theoretical techniques and tools – Formal Methods deliver practical, high-impact value – including cost reduction, risk mitigation, and better system outcomes across domains.

In High Assurance Software Development, Formal Methods help engineering teams deeply understand, verify, and improve the systems they build:
‍

In Cryptography, Formal Methods offer mathematical guarantees in a field where correctness is non-negotiable:
‍

In Model Based Systems Engineering, Formal Methods provide engineers with repeatable and thorough tools to analyze system models at varying levels of detail:
‍

In Artificial Intelligence and Machine Learning (AI/ML), a deep expertise in formal methods gives a clear-eyed understanding of the limits of formal verification and high-assurance techniques for complex, neural network-based architectures. That understanding shapes a more practical, impactful approach:
‍

Frequently asked questions

Do I have to mathematically verify the whole system?
‍
No, not at all. In fact, it would be untenable with large-scale systems. When applying formal methods, one should consider the scope of where to apply it and what tools are best suited for the application. For example, in an aircraft, the flight control system is a safety-critical software component that must meet very stringent standards such as DO-178C. This component may be a good target for formal verification approaches.

How do I know where in the system formal methods could be applied?

‍To start, find components that have high safety or security criticality, are challenging to understand, or are software-intensive. AFM approaches are very good at reasoning about complex logic. Likewise, there are many available tools for software-specific reasoning; it is easy to incrementally apply a little bit of formal methods into software analysis.

How do I know where in system development formal methods could be applied?

‍This question very much depends on your system development process, the teams that work at each level of design, and their willingness to participate in formal verification activities. There are varying tools, disciplines, and techniques that can be applied at different levels, so finding the right team who is willing to try will be your best bet.

Do I have to change my existing engineering techniques to support the inclusionof formal methods?

You can wrap formal methods around your existing techniques to increase assurance, and you do not have to rip out existing processes. If you use formal methods, there are likely things in your process that you won’t need to do any longer. There are also likely things that can be improved to enable formal methods. Since formal method techniques live on a spectrum, it is easy to identify places within your existing approaches where a little bit of formal methods could be applied. Even doing this in small places will result in value added.

‍Do you have to be highly trained in order to learn and apply AFM?

‍No. Over the last decades, much research has focused on automating mathematical approaches with the goal of making these tools more usable by any engineer. However, there still exists some tools and techniques that are very difficult to use and understand, so be careful when you choose what approach you want to incorporate into your workflow. For example, theorem provers like Coq or Isabelle are challenging to learn and use, but code-level contract tooling such as Frama-C are much easier for a programmer to learn and use.

Can you do a little bit of AFM and still get value out of it?

‍Yes, we recommend a simple approach such as static analysis for software analysis or architectural modeling and analysis for early stage development. These techniques are relatively easy to learn and use while having great benefit during system development.

Can testing and AFM supplement each other?

‍Very much so. In fact, there are some software verification tools that aid testing by automatically generating test cases for you. Like we described earlier, formal verification and validation address two different problems, both of which are valuable in system engineering.
